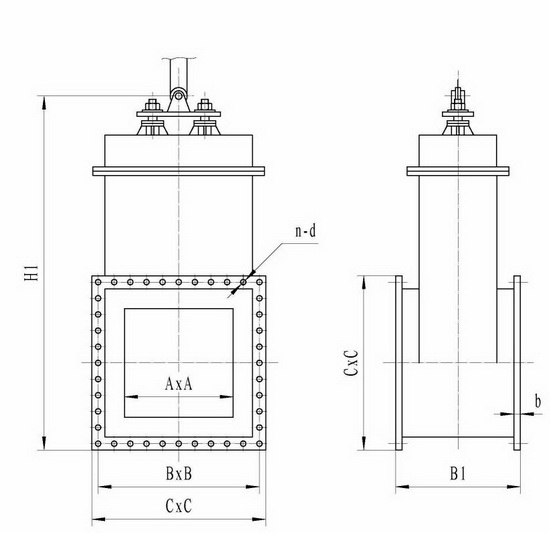

外形图：Outline
外形连接尺寸：Profile dimensions
|
A×A
|
B×B
|
C×C
|
B1
|
b
|
n-d
|
H1
|
|
1000×1000
|
1370×1370
|
1430×1430
|
700
|
16
|
32-Φ22
|
1860
|
|
1100×1100
|
1470×1470
|
1530×1530
|
700
|
16
|
36-Φ22
|
2020
|
|
1200×1200
|
1570×1570
|
1630×1630
|
700
|
16
|
36-Φ22
|
2170
|
|
1300×1300
|
1670×1670
|
1730×1730
|
700
|
16
|
40-Φ22
|
2320
|
|
1400×1400
|
1770×1770
|
1830×1830
|
700
|
20
|
40-Φ22
|
2470
|
|
1500×1500
|
1870×1870
|
1930×1930
|
700
|
20
|
44-Φ22
|
2620
|
|
1600×1600
|
1970×1970
|
2030×2030
|
750
|
20
|
44-Φ22
|
2820
|
|
1700×1700
|
2070×2070
|
2130×2130
|
750
|
20
|
48-Φ22
|
2970
|
|
1800×1800
|
2170×2170
|
2230×2230
|
750
|
20
|
48-Φ22
|
3120
|
|
1900×1900
|
2270×2270
|
2330×2330
|
750
|
20
|
48-Φ22
|
3270
|
|
2000×2000
|
2370×2370
|
2430×2430
|
750
|
20
|
48-Φ22
|
3420
|
|
2100×2100
|
2470×2470
|
2530×2530
|
800
|
20
|
48-Φ22
|
3650
|
|
2200×2200
|
2570×2570
|
2630×2630
|
800
|
20
|
52-Φ22
|
3800
|
|
2300×2300
|
2685×2685
|
2750×2750
|
800
|
24
|
52-Φ26
|
3950
|
|
2400×2400
|
2785×2785
|
2850×2850
|
800
|
24
|
56-Φ26
|
4100
|
|
2500×2500
|
2885×2885
|
2950×2950
|
800
|
24
|
60-Φ26
|
4250
|
