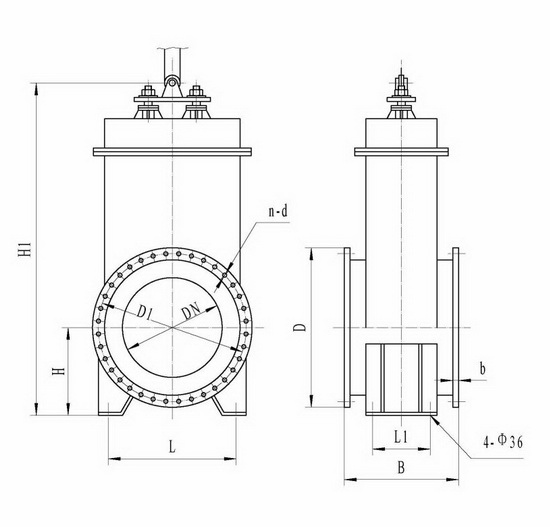

外形图：Outline
外形连接尺寸：Profile dimensions
|
DN
|
D
|
D1
|
B
|
b
|
n-d
|
H
|
H1
|
|
1000
|
1430
|
1370
|
700
|
16
|
32-Φ22
|
2160
|
1860
|
|
1100
|
1530
|
1470
|
700
|
16
|
36-Φ22
|
2320
|
2020
|
|
1200
|
1630
|
1570
|
700
|
16
|
36-Φ22
|
2470
|
2170
|
|
1300
|
1730
|
1670
|
700
|
16
|
40-Φ22
|
2620
|
2320
|
|
1400
|
1830
|
1770
|
700
|
20
|
40-Φ22
|
2770
|
2470
|
|
1500
|
1930
|
1870
|
700
|
20
|
44-Φ22
|
2920
|
2620
|
|
1600
|
2030
|
1970
|
750
|
20
|
44-Φ22
|
3180
|
2820
|
|
1700
|
2130
|
2070
|
750
|
20
|
48-Φ22
|
3330
|
2970
|
|
1800
|
2230
|
2170
|
750
|
20
|
48-Φ22
|
3480
|
3120
|
|
1900
|
2330
|
2270
|
750
|
20
|
48-Φ22
|
3630
|
3270
|
|
2000
|
2430
|
2370
|
750
|
20
|
48-Φ22
|
3780
|
3420
|
|
2100
|
2530
|
2470
|
800
|
20
|
48-Φ22
|
4070
|
3650
|
|
2200
|
2630
|
2570
|
800
|
20
|
52-Φ22
|
4220
|
3800
|
|
2300
|
2750
|
2685
|
800
|
24
|
52-Φ26
|
4370
|
3950
|
|
2400
|
2850
|
2785
|
800
|
24
|
56-Φ26
|
4520
|
4100
|
|
2500
|
2950
|
2885
|
800
|
24
|
60-Φ26
|
4670
|
4250
|
