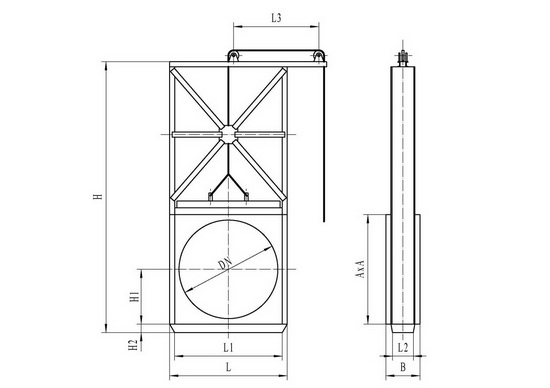

外形连接尺寸：Profile dimensions
|
DN
|
A
|
L
|
L1
|
L2
|
L3
|
B
|
H
|
H1
|
H2
|
|
2000
|
2320
|
2550
|
2300
|
300
|
1350
|
600
|
6570
|
1410
|
250
|
|
2100
|
2420
|
2650
|
2400
|
300
|
1400
|
600
|
6770
|
1460
|
250
|
|
2200
|
2520
|
2750
|
2500
|
300
|
1450
|
600
|
6970
|
1510
|
250
|
|
2300
|
2620
|
2850
|
2600
|
300
|
1500
|
600
|
7170
|
1560
|
250
|
|
2400
|
2720
|
2950
|
2700
|
300
|
1550
|
600
|
7370
|
1610
|
250
|
|
2500
|
2820
|
3050
|
2800
|
300
|
1600
|
600
|
7570
|
1660
|
250
|
|
2600
|
2920
|
3150
|
2900
|
300
|
1650
|
600
|
7770
|
1710
|
250
|
|
2700
|
3020
|
3250
|
3000
|
300
|
1700
|
600
|
7970
|
1760
|
250
|
|
2800
|
3120
|
3350
|
3100
|
300
|
1750
|
600
|
8170
|
1810
|
250
|
|
2900
|
3220
|
3450
|
3200
|
300
|
1800
|
600
|
8370
|
1860
|
250
|
|
3000
|
3400
|
3650
|
3380
|
500
|
1900
|
800
|
9050
|
2050
|
350
|
|
3100
|
3500
|
3750
|
3480
|
500
|
1950
|
800
|
9250
|
2100
|
350
|
|
3200
|
3600
|
3850
|
3580
|
500
|
2000
|
800
|
9450
|
2150
|
350
|
|
3300
|
3700
|
3950
|
3680
|
500
|
2050
|
800
|
9650
|
2200
|
350
|
|
3400
|
3800
|
4050
|
3780
|
500
|
2100
|
800
|
9850
|
2250
|
350
|
|
3500
|
3900
|
4150
|
3880
|
500
|
2150
|
800
|
10050
|
2300
|
350
|
|
3600
|
4000
|
4250
|
3980
|
500
|
2200
|
800
|
10250
|
2350
|
350
|
|
3700
|
4100
|
4350
|
4080
|
500
|
2250
|
800
|
10450
|
2400
|
350
|
|
3800
|
4200
|
4450
|
4180
|
500
|
2300
|
800
|
10650
|
2450
|
350
|
