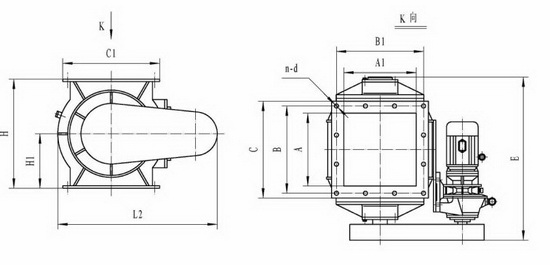

HGF-Ⅰ Ⅱ外形图：Outline

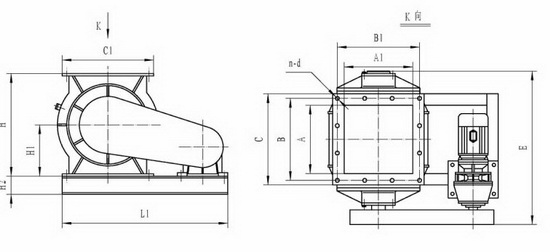

HTF-Ⅰ Ⅱ外形图：Outline
外形连接尺寸：Profile dimensions
|
A×A1
|
B×B1
|
C×C1
|
H
|
n-d
|
H1
|
H2
|
L1
|
L2
|
E
|
传动装置
Driving device
|
|
150×150
|
195×195
|
230×230
|
250
|
8-Ф10
|
125
|
80
|
720
|
610
|
630
|
BWY-15-43-0.5
|
|
200×200
|
245×245
|
280×280
|
300
|
8-Ф10
|
150
|
80
|
780
|
670
|
690
|
BWY-15-43-0.75
|
|
250×250
|
305×305
|
350×350
|
350
|
12-Ф10
|
175
|
80
|
830
|
720
|
740
|
BWY-15-43-0.75
|
|
300×200
|
355×255
|
400×300
|
300
|
10-Ф10
|
150
|
80
|
780
|
670
|
790
|
BWY-15-43-0.75
|
|
300×300
|
355×355
|
400×400
|
450
|
12-Ф10
|
225
|
100
|
920
|
810
|
790
|
BWY-18-59-1.1
|
|
400×300
|
455×355
|
500×400
|
450
|
14-Ф12
|
225
|
100
|
920
|
810
|
890
|
BWY-18-59-1.1
|
|
400×400
|
455×455
|
500×500
|
600
|
16-Ф12
|
300
|
120
|
1110
|
960
|
890
|
BWY-22-71-1.1
|
|
500×300
|
555×355
|
600×400
|
450
|
16-Ф14
|
225
|
100
|
920
|
810
|
1000
|
BWY-18-59-1.5
|
|
500×400
|
555×455
|
600×500
|
600
|
18-Ф14
|
300
|
120
|
1110
|
950
|
1000
|
BWY-22-71-1.5
|
|
500×500
|
555×555
|
600×600
|
760
|
20-Ф14
|
380
|
100
|
1230
|
1080
|
1000
|
BWY-22-71-2.2
|
|
600×400
|
655×455
|
700×500
|
600
|
18-Ф14
|
300
|
120
|
1110
|
960
|
1100
|
BWY-22-71-1.5
|
|
600×500
|
655×555
|
700×600
|
760
|
20-Ф14
|
380
|
120
|
1230
|
1080
|
1100
|
BWY-22-71-2.2
|
|
600×600
|
655×655
|
700×700
|
900
|
20-Ф14
|
450
|
120
|
1330
|
1180
|
1100
|
BWY-22-71-3
|
|
700×500
|
755×555
|
800×600
|
760
|
20-Ф14
|
380
|
120
|
1230
|
1080
|
1220
|
BWY-22-71-3
|
|
700×600
|
755×655
|
800×700
|
900
|
20-Ф14
|
450
|
120
|
1330
|
1180
|
1220
|
BWY-22-71-4
|
|
700×700
|
755×755
|
800×800
|
1000
|
20-Ф14
|
500
|
140
|
1500
|
1355
|
1220
|
BWY-27-71-3
|
|
800×700
|
855×755
|
900×800
|
1000
|
22-Ф14
|
500
|
140
|
1500
|
1355
|
1320
|
BWY-27-71-3
|
|
800×800
|
855×855
|
900×900
|
1200
|
24-Ф14
|
600
|
140
|
1600
|
1455
|
1320
|
BWY-27-71-4
|
|
900×900
|
955×955
|
1000×1000
|
1400
|
24-Ф14
|
700
|
140
|
1810
|
1670
|
1430
|
BWY-33-71-5.5
|
|
1000×1000
|
1070×1070
|
1130×1130
|
1500
|
28-Ф18
|
750
|
140
|
1910
|
1770
|
1530
|
BWY-33-71-5.5
|
