技术参数表：Technical Data Sheet
|
技术性能 Name
|
技术参数Parameters
|
|
公称压力 PN
|
0.1MPa
|
|
泄漏率Leakage rate
|
≤1％
|
|
适用温度Temperature
|
≤300℃
|
|
适用介质Medium
|
空气、烟气、粉尘气体等Air, smoke, gas with powder
|
|
电动推杆 Electric stem
|
|
DN100～350
|
DN400～900
|
DN1000～1600
|
DN1700～2200
|
DN2300～2600
|
DN2700～3000
|
|
DTⅠA63-M
|
DTⅡA100-M
|
DTⅡA250-M
|
DTⅡA500-M
|
DTⅡA1000-M
|
DTⅡA1600-M
|

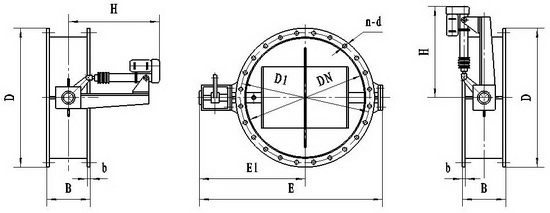

外形图：Outline
外形连接尺寸：Profile dimensions
|
DN
|
D
|
D1
|
B
|
b
|
n-d
|
E
|
E1
|
H
|
|
100
|
180
|
145
|
180
|
8
|
4-Φ12
|
380
|
265
|
550
|
|
150
|
230
|
195
|
180
|
8
|
8-Φ12
|
430
|
290
|
550
|
|
200
|
280
|
245
|
180
|
8
|
8-Φ12
|
480
|
315
|
550
|
|
250
|
350
|
305
|
180
|
8
|
12-Φ12
|
550
|
350
|
550
|
|
300
|
400
|
355
|
180
|
8
|
12-Φ12
|
600
|
375
|
550
|
|
350
|
450
|
405
|
180
|
8
|
12-Φ12
|
650
|
400
|
550
|
|
400
|
500
|
455
|
200
|
10
|
16-Φ14
|
750
|
475
|
650
|
|
450
|
550
|
505
|
200
|
10
|
16-Φ14
|
800
|
500
|
650
|
|
500
|
600
|
555
|
200
|
10
|
20-Φ14
|
850
|
525
|
650
|
|
600
|
700
|
655
|
200
|
10
|
20-Φ14
|
950
|
575
|
650
|
|
700
|
800
|
755
|
220
|
10
|
20-Φ14
|
1055
|
630
|
650
|
|
800
|
900
|
855
|
220
|
10
|
24-Φ14
|
1185
|
695
|
650
|
|
900
|
1000
|
955
|
220
|
10
|
24-Φ14
|
1285
|
745
|
650
|
|
1000
|
1130
|
1070
|
260
|
12
|
28-Φ18
|
1385
|
790
|
700
|
|
1100
|
1230
|
1170
|
260
|
12
|
28-Φ18
|
1485
|
840
|
700
|
|
1200
|
1330
|
1270
|
260
|
12
|
28-Φ18
|
1585
|
890
|
700
|
|
1300
|
1430
|
1370
|
300
|
12
|
32-Φ18
|
1685
|
940
|
700
|
|
1400
|
1530
|
1470
|
300
|
12
|
36-Φ18
|
1785
|
990
|
700
|
|
1500
|
1630
|
1570
|
300
|
12
|
36-Φ18
|
1885
|
1040
|
700
|
|
1600
|
1730
|
1670
|
300
|
12
|
40-Φ18
|
1985
|
1090
|
700
|
|
1700
|
1830
|
1770
|
340
|
16
|
40-Φ18
|
2140
|
1195
|
810
|
|
1800
|
1930
|
1870
|
340
|
16
|
44-Φ18
|
2240
|
1245
|
810
|
|
1900
|
2030
|
1970
|
340
|
16
|
44-Φ18
|
2340
|
1295
|
810
|
|
2000
|
2130
|
2070
|
340
|
16
|
48-Φ22
|
2440
|
1345
|
810
|
|
2100
|
2230
|
2170
|
340
|
16
|
48-Φ22
|
2540
|
1395
|
810
|
|
2200
|
2330
|
2270
|
340
|
16
|
48-Φ22
|
2640
|
1445
|
810
|
|
2300
|
2430
|
2370
|
380
|
16
|
48-Φ22
|
2805
|
1555
|
860
|
|
2400
|
2530
|
2470
|
380
|
16
|
48-Φ22
|
2905
|
1605
|
860
|
|
2500
|
2630
|
2570
|
380
|
16
|
52-Φ22
|
3005
|
1655
|
860
|
|
2600
|
2730
|
2670
|
380
|
16
|
52-Φ22
|
3105
|
1705
|
860
|
|
2700
|
2830
|
2770
|
420
|
20
|
56-Φ22
|
3225
|
1775
|
1000
|
|
2800
|
2930
|
2870
|
420
|
20
|
60-Φ22
|
3325
|
1825
|
1000
|
|
2900
|
3030
|
2970
|
420
|
20
|
60-Φ22
|
3425
|
1875
|
1000
|
|
3000
|
3130
|
3070
|
420
|
20
|
60-Φ22
|
3525
|
1925
|
1000
|
