技术参数表：Technical Data Sheet
|
技术性能 Name
|
技术参数Parameters
|
|
公称压力 PN
|
0.1MPa
|
|
泄漏率Leakage rate
|
≤1％
|
|
适用温度Temperature
|
Q235 ≤300℃
|
16Mn≤350℃
|
|
适用介质Medium
|
空气、烟气、粉尘气体等Air, smoke, gas with powder
|
|
自动执行器Actuator
|
|
DN1100～1600
|
DN1700～2200
|
DN2300～2600
|
DN2700～3000
|
DN3100～DN3500
|
DN3600～DN4000
|
|
T:1600N.m
|
T:2500N.m
|
T:4000N.m
|
T:6000N.m
|
T:800N.m
|
T:10000N.m
|

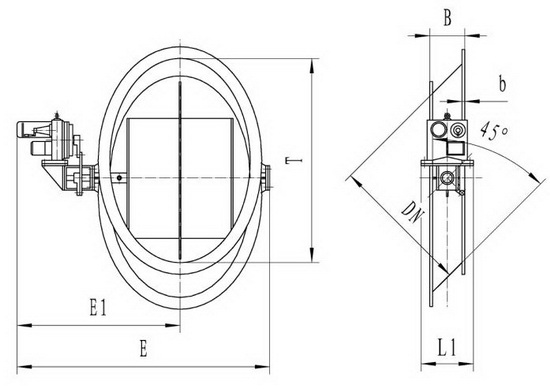

外形图：Outline
外形连接尺寸：Profile dimensions
|
DN
|
T
|
B
|
b
|
n-d
|
E
|
E1
|
L1
|
|
1100
|
1555
|
260
|
12
|
28-Φ18
|
2355
|
1575
|
1575
|
|
1200
|
1697
|
260
|
12
|
28-Φ18
|
2455
|
1625
|
1625
|
|
1300
|
1838
|
300
|
12
|
32-Φ18
|
2555
|
1725
|
1725
|
|
1400
|
1980
|
300
|
12
|
36-Φ18
|
2655
|
1775
|
1775
|
|
1500
|
2121
|
300
|
12
|
36-Φ18
|
2770
|
1845
|
1845
|
|
1600
|
2263
|
300
|
12
|
40-Φ18
|
2870
|
1895
|
1895
|
|
1700
|
2404
|
340
|
16
|
40-Φ18
|
3110
|
1945
|
1945
|
|
1800
|
2545
|
340
|
16
|
44-Φ18
|
3210
|
1995
|
1995
|
|
1900
|
2687
|
340
|
16
|
44-Φ18
|
3310
|
2045
|
2045
|
|
2000
|
2828
|
340
|
16
|
48-Φ22
|
3410
|
2095
|
2095
|
|
2100
|
2970
|
340
|
16
|
48-Φ22
|
3525
|
2145
|
2145
|
|
2200
|
3111
|
340
|
16
|
48-Φ22
|
3625
|
2195
|
2195
|
|
2300
|
3253
|
380
|
16
|
48-Φ22
|
3805
|
2245
|
2245
|
|
2400
|
3394
|
380
|
16
|
48-Φ22
|
3905
|
2295
|
2295
|
|
2500
|
3536
|
380
|
16
|
52-Φ22
|
4005
|
2345
|
2345
|
|
2600
|
3677
|
380
|
16
|
52-Φ22
|
4105
|
2395
|
2395
|
|
2700
|
3818
|
420
|
20
|
56-Φ22
|
4210
|
2550
|
2550
|
|
2800
|
3960
|
420
|
20
|
60-Φ22
|
4310
|
2600
|
2600
|
|
2900
|
4101
|
420
|
20
|
60-Φ22
|
4410
|
2650
|
2650
|
|
3000
|
4243
|
420
|
20
|
60-Φ22
|
4510
|
2700
|
2700
|
