技术参数表：Technical Data Sheet
|
技术性能 Name
|
技术参数Parameters
|
|
公称压力 PN
|
0.1MPa
|
|
泄漏率Leakage rate
|
≤1.5％
|
|
适用温度Temperature
|
≤300℃
|
|
适用介质Medium
|
空气、粉尘气体等Air, gas with powder
|

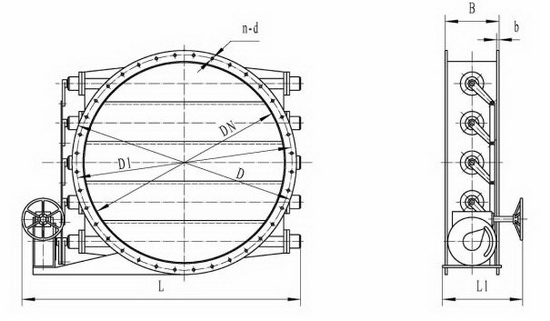

外形图：Outline
外形连接尺寸：Profile dimensions
|
DN
|
D
|
D1
|
B
|
b
|
n-d
|
L
|
L1
|
|
200
|
260
|
235
|
160
|
4
|
8-Φ10
|
680
|
275
|
|
220
|
280
|
255
|
160
|
4
|
8-Φ10
|
700
|
275
|
|
250
|
310
|
285
|
160
|
6
|
12-Φ10
|
750
|
275
|
|
280
|
340
|
315
|
160
|
6
|
12-Φ10
|
780
|
275
|
|
300
|
360
|
335
|
180
|
6
|
12-Φ10
|
800
|
275
|
|
360
|
440
|
405
|
180
|
8
|
16-Φ12
|
860
|
275
|
|
400
|
480
|
445
|
180
|
8
|
16-Φ12
|
900
|
365
|
|
450
|
530
|
495
|
180
|
8
|
16-Φ12
|
950
|
365
|
|
500
|
580
|
545
|
200
|
8
|
20-Φ12
|
1000
|
365
|
|
560
|
640
|
605
|
200
|
8
|
20-Φ12
|
1060
|
365
|
|
630
|
710
|
675
|
200
|
8
|
20-Φ12
|
1130
|
365
|
|
700
|
780
|
745
|
200
|
8
|
20-Φ12
|
1200
|
365
|
|
710
|
790
|
755
|
200
|
8
|
20-Φ12
|
1210
|
365
|
|
750
|
830
|
795
|
200
|
8
|
20-Φ12
|
1250
|
365
|
|
800
|
880
|
845
|
220
|
8
|
24-Φ12
|
1300
|
365
|
|
900
|
980
|
945
|
220
|
8
|
24-Φ12
|
1400
|
365
|
|
1000
|
1100
|
1055
|
260
|
10
|
28-Φ14
|
1530
|
365
|
|
1120
|
1220
|
1175
|
260
|
10
|
28-Φ14
|
1750
|
480
|
|
1200
|
1300
|
1255
|
280
|
10
|
28-Φ14
|
1830
|
480
|
|
1250
|
1350
|
1305
|
280
|
10
|
32-Φ14
|
1880
|
480
|
|
1300
|
1400
|
1355
|
320
|
10
|
32-Φ14
|
1930
|
480
|
|
1320
|
1420
|
1375
|
320
|
10
|
32-Φ14
|
1950
|
480
|
|
1400
|
1500
|
1455
|
320
|
10
|
36-Φ14
|
2030
|
480
|
|
1500
|
1600
|
1555
|
320
|
10
|
36-Φ14
|
2130
|
540
|
|
1600
|
1700
|
1655
|
320
|
10
|
40-Φ14
|
2230
|
540
|
|
1700
|
1820
|
1765
|
420
|
12
|
40-Φ18
|
2330
|
540
|
|
1800
|
1920
|
1865
|
420
|
12
|
44-Φ18
|
2430
|
540
|
|
1900
|
2020
|
1965
|
420
|
12
|
44-Φ18
|
2530
|
540
|
|
2000
|
2120
|
2065
|
420
|
12
|
48-Φ18
|
2630
|
540
|
|
2200
|
2320
|
2265
|
450
|
12
|
48-Φ18
|
2830
|
600
|
|
2500
|
2620
|
2565
|
450
|
12
|
52-Φ18
|
3130
|
600
|
|
2800
|
2930
|
2870
|
500
|
16
|
60-Φ22
|
3430
|
600
|
