技术参数表：Technical Data Sheet
|
技术性能 Name
|
技术参数Parameters
|
|
公称压力 PN
|
0.1MPa
|
|
泄漏率Leakage rate
|
≤1.5％
|
|
适用温度Temperature
|
≤300℃
|
|
适用介质Medium
|
空气、粉尘气体等Air, gas with powder
|
|
自动执行器Actuator
|
|
DN200～360
|
DN400～630
|
DN700～1000
|
DN1120～1600
|
DN1700～2200
|
DN2300～2800
|
|
T:100N.m
|
T:250N.m
|
T:600N.m
|
T:1600N.m
|
T:2500N.m
|
T:4000N.m
|

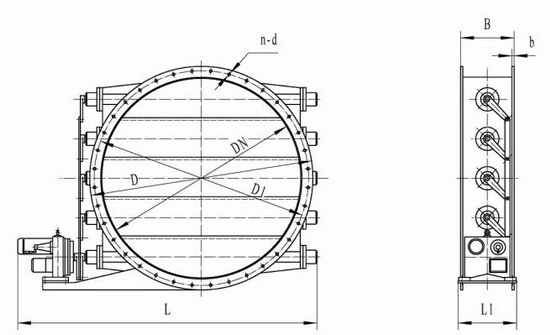

外形图：Outline
外形连接尺寸：Profile dimensions
|
DN
|
D
|
D1
|
B
|
b
|
n-d
|
L
|
L1
|
|
200
|
260
|
235
|
160
|
4
|
8-Φ10
|
840
|
250
|
|
220
|
280
|
255
|
160
|
4
|
8-Φ10
|
860
|
250
|
|
250
|
310
|
285
|
160
|
6
|
12-Φ10
|
910
|
250
|
|
280
|
340
|
315
|
160
|
6
|
12-Φ10
|
940
|
250
|
|
300
|
360
|
335
|
180
|
6
|
12-Φ10
|
960
|
250
|
|
360
|
440
|
405
|
180
|
8
|
16-Φ12
|
1020
|
250
|
|
400
|
480
|
445
|
180
|
8
|
16-Φ12
|
1090
|
300
|
|
450
|
530
|
495
|
180
|
8
|
16-Φ12
|
1140
|
300
|
|
500
|
580
|
545
|
200
|
8
|
20-Φ12
|
1190
|
300
|
|
560
|
640
|
605
|
200
|
8
|
20-Φ12
|
1250
|
300
|
|
630
|
710
|
675
|
200
|
8
|
20-Φ12
|
1320
|
300
|
|
700
|
780
|
745
|
200
|
8
|
20-Φ12
|
1460
|
365
|
|
710
|
790
|
755
|
200
|
8
|
20-Φ12
|
1470
|
365
|
|
750
|
830
|
795
|
200
|
8
|
20-Φ12
|
1510
|
365
|
|
800
|
880
|
845
|
220
|
8
|
24-Φ12
|
1560
|
365
|
|
900
|
980
|
945
|
220
|
8
|
24-Φ12
|
1660
|
365
|
|
1000
|
1100
|
1055
|
260
|
10
|
28-Φ14
|
1790
|
365
|
|
1120
|
1220
|
1175
|
260
|
10
|
28-Φ14
|
2060
|
420
|
|
1200
|
1300
|
1255
|
280
|
10
|
28-Φ14
|
2140
|
420
|
|
1250
|
1350
|
1305
|
280
|
10
|
32-Φ14
|
2190
|
420
|
|
1300
|
1400
|
1355
|
320
|
10
|
32-Φ14
|
2240
|
420
|
|
1320
|
1420
|
1375
|
320
|
10
|
32-Φ14
|
2260
|
420
|
|
1400
|
1500
|
1455
|
320
|
10
|
36-Φ14
|
2340
|
420
|
|
1500
|
1600
|
1555
|
320
|
10
|
36-Φ14
|
2510
|
450
|
|
1600
|
1700
|
1655
|
320
|
10
|
40-Φ14
|
2610
|
450
|
|
1700
|
1820
|
1765
|
420
|
12
|
40-Φ18
|
2710
|
450
|
|
1800
|
1920
|
1865
|
420
|
12
|
44-Φ18
|
2810
|
450
|
|
1900
|
2020
|
1965
|
420
|
12
|
44-Φ18
|
2910
|
450
|
|
2000
|
2120
|
2065
|
420
|
12
|
48-Φ18
|
3010
|
450
|
|
2200
|
2320
|
2265
|
450
|
12
|
48-Φ18
|
3240
|
480
|
|
2500
|
2620
|
2565
|
450
|
12
|
52-Φ18
|
3540
|
480
|
|
2800
|
2930
|
2870
|
500
|
16
|
60-Φ22
|
3740
|
480
|
