技术参数表：Technical Data Sheet
|
技术性能 Name
|
技术参数Parameters
|
|
公称压力 PN
|
0.1MPa
|
|
泄漏率Leakage rate
|
≤1.5％
|
|
适用温度Temperature
|
≤300℃
|
|
适用介质Medium
|
空气、粉尘气体等Air, gas with powder
|

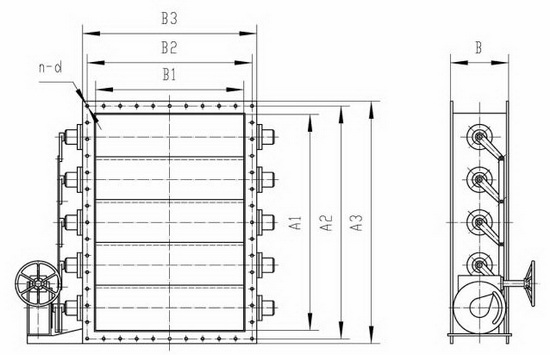

外形图：Outline
外形连接尺寸：Profile dimensions
|
A1×B1
|
A2×B2
|
A3×B3
|
B
|
b
|
n-d
|
|
320×180
|
355×215
|
380×240
|
180
|
6
|
10-Φ10
|
|
320×250
|
355×285
|
380×310
|
180
|
6
|
12-Φ10
|
|
400×200
|
445×245
|
480×280
|
200
|
8
|
12-Φ12
|
|
400×320
|
445×365
|
480×400
|
200
|
8
|
14-Φ12
|
|
500×200
|
545×245
|
580×280
|
220
|
8
|
14-Φ12
|
|
500×400
|
545×445
|
580×480
|
220
|
8
|
18-Φ12
|
|
630×320
|
675×365
|
710×400
|
220
|
8
|
18-Φ12
|
|
630×400
|
675×445
|
710×480
|
220
|
8
|
20-Φ12
|
|
800×400
|
845×445
|
880×480
|
240
|
8
|
22-Φ12
|
|
800×630
|
845×675
|
880×710
|
240
|
8
|
26-Φ12
|
|
1000×500
|
1055×555
|
1100×600
|
260
|
10
|
26-Φ14
|
|
1000×800
|
1055×855
|
1100×900
|
260
|
10
|
30-Φ14
|
|
1250×630
|
1305×685
|
1350×730
|
280
|
10
|
32-Φ14
|
|
1250×1000
|
1305×1055
|
1350×1100
|
280
|
10
|
36-Φ14
|
|
1400×800
|
1455×855
|
1500×900
|
300
|
10
|
38-Φ14
|
|
1400×1250
|
1455×1305
|
1500×1350
|
300
|
10
|
44-Φ14
|
|
1600×1000
|
1655×1055
|
1700×1100
|
320
|
10
|
42-Φ14
|
|
1600×1250
|
1655×1305
|
1700×1350
|
320
|
10
|
46-Φ14
|
|
1800×1250
|
1865×1315
|
1920×1370
|
340
|
12
|
46-Φ18
|
|
1800×1400
|
1865×1465
|
1920×1520
|
340
|
12
|
50-Φ18
|
|
2000×1250
|
2065×1315
|
2120×1370
|
360
|
12
|
50-Φ18
|
|
2000×1800
|
2065×1865
|
2120×1920
|
360
|
12
|
56-Φ18
|
|
2500×1800
|
2565×1865
|
2620×1920
|
420
|
12
|
60-Φ18
|
|
2500×2000
|
2565×2065
|
2620×2120
|
420
|
12
|
64-Φ18
|
|
2800×2500
|
2870×2570
|
2930×2630
|
440
|
16
|
72-Φ22
|
|
3200×2800
|
3270×2870
|
3330×2930
|
480
|
16
|
80-Φ22
|
|
3600×3200
|
3670×3270
|
3730×3330
|
520
|
16
|
88-Φ22
|
|
4000×3600
|
4070×3670
|
4130×3730
|
520
|
16
|
100-Φ22
|
