技术参数表：Technical Data Sheet
|
技术性能 Name
|
技术参数Parameters
|
|
公称压力(MPa) PN
|
0.1
|
|
密封试验压力(MPa)
seal test pressure
|
0.11
|
|
强度试验压力(MPa)
strength test pressure
|
0.12
|
|
适用温度Temperature
|
-10℃ -120℃软密封
|
-10℃ -350℃硬密封
|
|
适用介质Medium
|
空气、烟气、粉尘气体等 Air, smoke, gas with powder etc
|
注：X表示软密封，H表示硬密封
Notes: X denotes soft sealing, H denotes hard sealing.

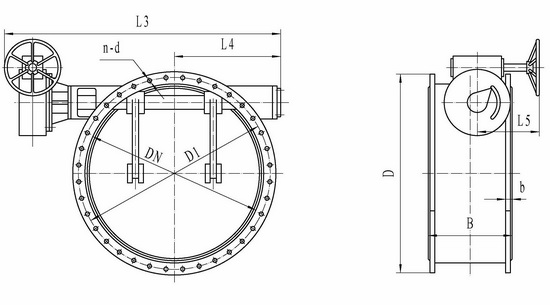

外形图：Outline
外形连接尺寸：Profile dimensions
|
DN
|
D
|
D1
|
B
|
b
|
n-d
|
L3
|
L4
|
L5
|
|
400
|
500
|
455
|
400
|
10
|
16-Φ14
|
746
|
298
|
300
|
|
450
|
550
|
505
|
400
|
10
|
16-Φ14
|
800
|
325
|
300
|
|
500
|
600
|
555
|
450
|
10
|
20-Φ14
|
850
|
350
|
300
|
|
600
|
700
|
655
|
450
|
10
|
20-Φ14
|
966
|
408
|
300
|
|
700
|
800
|
755
|
500
|
10
|
20-Φ14
|
1085
|
460
|
300
|
|
800
|
900
|
855
|
500
|
10
|
24-Φ14
|
1101
|
518
|
300
|
|
900
|
1000
|
955
|
550
|
10
|
24-Φ14
|
1201
|
568
|
300
|
|
1000
|
1130
|
1070
|
550
|
12
|
28-Φ18
|
1405
|
618
|
300
|
|
1100
|
1230
|
1170
|
600
|
12
|
28-Φ18
|
1506
|
668
|
300
|
|
1200
|
1330
|
1270
|
600
|
12
|
28-Φ18
|
1606
|
718
|
300
|
|
1300
|
1430
|
1370
|
650
|
12
|
32-Φ18
|
1716
|
768
|
400
|
|
1400
|
1530
|
1470
|
650
|
12
|
36-Φ18
|
1816
|
818
|
400
|
|
1500
|
1630
|
1570
|
700
|
12
|
36-Φ18
|
1956
|
878
|
400
|
|
1600
|
1730
|
1670
|
700
|
12
|
40-Φ18
|
2006
|
928
|
400
|
|
1700
|
1830
|
1770
|
750
|
16
|
40-Φ18
|
2160
|
980
|
400
|
|
1800
|
1930
|
1870
|
750
|
16
|
44-Φ18
|
2210
|
1030
|
400
|
|
1900
|
2030
|
1970
|
800
|
16
|
44-Φ18
|
2285
|
1080
|
400
|
|
2000
|
2130
|
2070
|
800
|
16
|
48-Φ22
|
2505
|
1130
|
400
|
|
2100
|
2230
|
2170
|
850
|
16
|
48-Φ22
|
2611
|
1180
|
400
|
|
2200
|
2330
|
2270
|
850
|
16
|
48-Φ22
|
2696
|
1238
|
400
|
|
2300
|
2430
|
2370
|
900
|
16
|
48-Φ22
|
2715
|
1288
|
500
|
|
2400
|
2530
|
2470
|
900
|
16
|
48-Φ22
|
2796
|
1338
|
500
|
|
2500
|
2630
|
2570
|
950
|
16
|
52-Φ22
|
2846
|
1388
|
500
|
|
2600
|
2730
|
2670
|
950
|
16
|
52-Φ22
|
2916
|
1438
|
500
|
|
2700
|
2830
|
2770
|
1000
|
20
|
56-Φ22
|
3016
|
1498
|
500
|
|
2800
|
2930
|
2870
|
1000
|
20
|
60-Φ22
|
3116
|
1545
|
500
|
|
2900
|
3030
|
2970
|
1050
|
20
|
60-Φ22
|
3216
|
1605
|
500
|
|
3000
|
3130
|
3070
|
1050
|
20
|
60-Φ22
|
3316
|
1665
|
500
|
