技术参数表：Technical Data Sheet
|
技术性能 Name
|
技术参数Parameters
|
|
公称压力(MPa) PN
|
0.05
|
|
密封试验压力(MPa)
seal test pressure
|
0.055
|
|
强度试验压力(MPa)
strength test pressure
|
0.075
|
|
适用温度Temperature
|
-10℃～120℃软密封Soft sealing
|
|
适用介质Medium
|
空气、烟气、粉尘气体等 Air, smoke, gas with powder etc
|

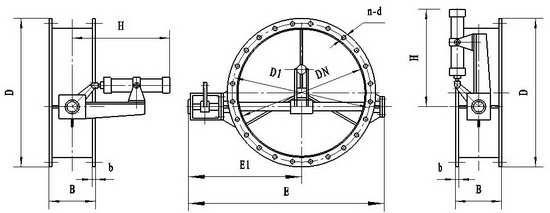

外形图：Outline
外形连接尺寸：Profile dimensions
|
DN
|
D
|
D1
|
B
|
b
|
n-d
|
E
|
E1
|
H
|
|
100
|
180
|
145
|
180
|
8
|
4-Φ12
|
415
|
110
|
450
|
|
150
|
230
|
195
|
180
|
8
|
8-Φ12
|
415
|
135
|
450
|
|
180
|
260
|
225
|
180
|
8
|
8-Φ12
|
580
|
150
|
450
|
|
200
|
280
|
245
|
180
|
8
|
8-Φ12
|
520
|
160
|
450
|
|
220
|
300
|
265
|
180
|
8
|
8-Φ12
|
540
|
170
|
450
|
|
250
|
350
|
305
|
180
|
8
|
12-Φ12
|
570
|
185
|
520
|
|
280
|
380
|
335
|
180
|
8
|
12-Φ12
|
610
|
200
|
520
|
|
300
|
400
|
355
|
180
|
8
|
12-Φ12
|
610
|
210
|
520
|
|
320
|
420
|
375
|
180
|
8
|
12-Φ12
|
650
|
220
|
520
|
|
350
|
450
|
405
|
180
|
8
|
12-Φ12
|
680
|
235
|
520
|
|
400
|
500
|
455
|
200
|
10
|
16-Φ14
|
850
|
300
|
580
|
|
450
|
550
|
505
|
200
|
10
|
16-Φ14
|
900
|
325
|
580
|
|
500
|
600
|
555
|
200
|
10
|
20-Φ14
|
950
|
350
|
580
|
|
550
|
650
|
605
|
200
|
10
|
20-Φ14
|
1000
|
375
|
580
|
|
600
|
700
|
655
|
200
|
10
|
20-Φ14
|
1050
|
400
|
580
|
|
630
|
730
|
685
|
220
|
10
|
20-Φ14
|
1160
|
435
|
650
|
|
650
|
750
|
705
|
220
|
10
|
20-Φ14
|
1180
|
445
|
650
|
|
700
|
800
|
755
|
220
|
10
|
20-Φ14
|
1230
|
470
|
650
|
|
800
|
900
|
855
|
220
|
10
|
24-Φ14
|
1335
|
520
|
650
|
|
900
|
1000
|
955
|
220
|
10
|
24-Φ14
|
1435
|
570
|
650
|
|
1000
|
1130
|
1070
|
260
|
12
|
28-Φ18
|
1685
|
750
|
820
|
|
1120
|
1250
|
1190
|
260
|
12
|
28-Φ18
|
1805
|
810
|
820
|
|
1200
|
1330
|
1270
|
260
|
12
|
28-Φ18
|
1965
|
950
|
820
|
|
1300
|
1430
|
1370
|
300
|
12
|
32-Φ18
|
2095
|
960
|
960
|
|
1400
|
1530
|
1470
|
300
|
12
|
36-Φ18
|
2195
|
1010
|
960
|
|
1500
|
1630
|
1570
|
300
|
12
|
36-Φ18
|
2295
|
1060
|
960
|
|
1600
|
1730
|
1670
|
300
|
12
|
40-Φ18
|
2395
|
1110
|
960
|
