技术参数表：Technical Data Sheet
|
技术性能 Name
|
技术参数Parameters
|
|
公称压力(MPa) PN
|
0.05
|
|
密封试验压力(MPa)
seal test pressure
|
0.055
|
|
强度试验压力(MPa)
strength test pressure
|
0.075
|
|
适用温度Temperature
|
-10℃～120℃
|
|
适用介质Medium
|
空气、烟气、粉尘气体等 Air, smoke, gas with powder etc
|

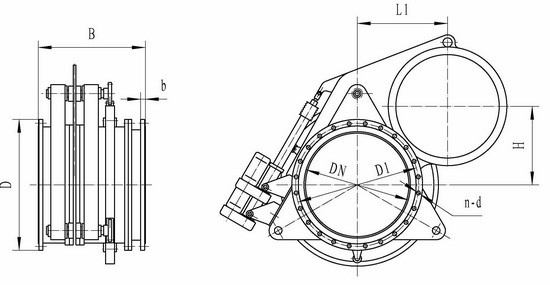

外形图：Outline
外形连接尺寸：Profile dimensions
|
DN
|
D1
|
D
|
B
|
b
|
L1
|
n-d
|
H
|
|
400
|
495
|
540
|
700
|
22
|
550
|
16-Φ22
|
405
|
|
450
|
550
|
595
|
700
|
24
|
600
|
16-Φ22
|
430
|
|
500
|
600
|
645
|
700
|
24
|
680
|
20-Φ22
|
750
|
|
600
|
705
|
755
|
700
|
26
|
840
|
20-Φ26
|
830
|
|
700
|
810
|
860
|
800
|
26
|
1050
|
24-Φ26
|
880
|
|
800
|
920
|
975
|
800
|
26
|
1150
|
24-Φ30
|
900
|
|
900
|
1020
|
1075
|
800
|
26
|
1300
|
24-Φ30
|
1100
|
|
1000
|
1120
|
1175
|
800
|
26
|
1450
|
28-Φ30
|
1300
|
|
1200
|
1320
|
1375
|
900
|
26
|
1550
|
32-Φ30
|
1400
|
|
1300
|
1420
|
1475
|
900
|
28
|
1600
|
32-Φ30
|
1500
|
|
1400
|
1520
|
1575
|
900
|
28
|
1700
|
36-Φ30
|
1550
|
