技术参数表：Technical Data Sheet
|
公称压力
PN
|
适用温度
Working temperature
|
适用介质
Working medium
|
|
≤0.05MPa
|
≤400℃
|
空气、烟气、粉尘气体等
Air, smoke, gas with dust etc.
|

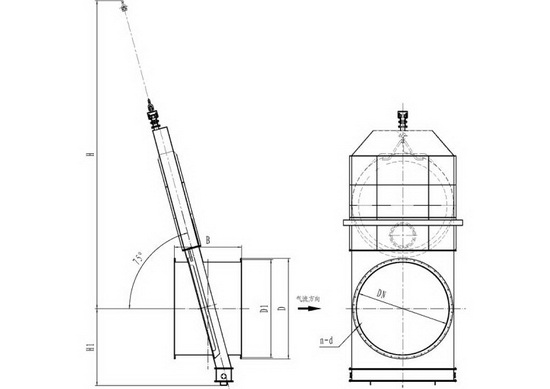

外形图：Outline
外形连接尺寸：Profile dimensions
|
DN
|
D1
|
D
|
n-d
|
B
|
H
|
H1
|
|
1000
|
1095
|
1150
|
28-φ22
|
1250
|
4460
|
1050
|
|
1200
|
1295
|
1350
|
28-φ22
|
1300
|
4930
|
1200
|
|
1400
|
1495
|
1550
|
36-φ22
|
1350
|
5261
|
1370
|
|
1600
|
1695
|
1750
|
40-φ22
|
1400
|
6129
|
1550
|
|
1800
|
1895
|
1950
|
44-φ22
|
1450
|
6507
|
1680
|
|
2000
|
2100
|
2160
|
48-φ22
|
1500
|
6944
|
1840
|
|
2200
|
2300
|
2360
|
48-φ22
|
1550
|
7755
|
2100
|
|
2400
|
2500
|
2560
|
48-φ22
|
1600
|
8499
|
2200
|
|
2600
|
2700
|
2760
|
52-φ22
|
1650
|
9175
|
2330
|
