技术参数表：Technical Data Sheet
|
公称压力
PN
|
适用温度
Working temperature
|
适用介质
Working medium
|
|
≤0.05MPa
|
≤400℃
|
空气、烟气、粉尘气体等
Air, smoke, gas with dust etc.
|

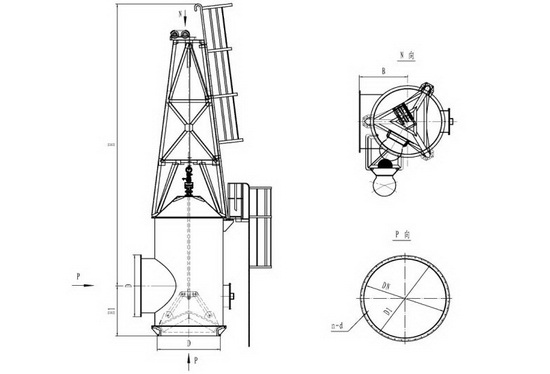

外形图：Outline
外形连接尺寸：Profile dimensions
|
DN
|
D1
|
D
|
n-d
|
B
|
H
|
H1
|
|
1000
|
1095
|
1150
|
28-φ22
|
800
|
4500
|
950
|
|
1200
|
1295
|
1350
|
28-φ22
|
950
|
5000
|
1050
|
|
1400
|
1495
|
1550
|
36-φ22
|
1050
|
5800
|
1150
|
|
1600
|
1695
|
1750
|
40-φ22
|
1150
|
6500
|
1300
|
|
1800
|
1895
|
1950
|
44-φ22
|
1250
|
7000
|
1400
|
|
2000
|
2100
|
2160
|
48-φ22
|
1450
|
7750
|
1500
|
|
2200
|
2300
|
2360
|
48-φ22
|
1500
|
8750
|
1600
|
|
2400
|
2500
|
2560
|
48-φ22
|
1550
|
9800
|
1700
|
|
2600
|
2700
|
2760
|
52-φ22
|
1600
|
10750
|
1800
|
