工作原理：Working Principle
棒阀随时按需要供给物料≤φ50mm 以下的颗粒物料。根据工况的不同需要调整棒条间的间隙，间隔抽出棒条增大间隙以通过≥φ50mm的块料。也可以作流通块料的切断或调节作用。
The valve can provides grain material that the diameter is less than 50mm according to the demand in any time. Draw out the grid in order to increase the clearance of grid so that the block material that the diameter is more than 50mm can pass through the grid. It also can be used to cut off or adjust the block material.

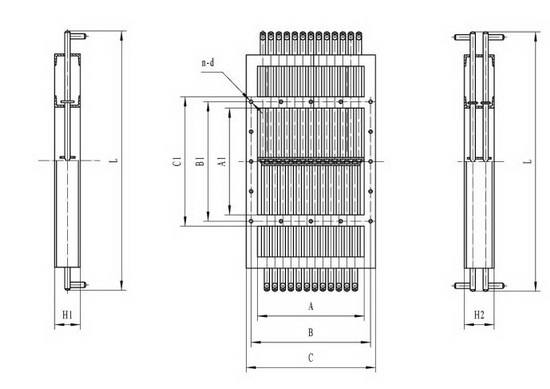

外形图：Outline
BZ-Ⅰ BZ-Ⅱ
外形连接尺寸：Profile dimensions
|
A×A1
|
B×B1
|
C×C1
|
L
|
H1
|
H2
|
n-d
|
|
300×300
|
356×356
|
396×396
|
800
|
100
|
120
|
8-Φ12
|
|
400×400
|
456×456
|
493×496
|
1000
|
100
|
120
|
12-Φ12
|
|
1000×400
|
1056×456
|
1096×496
|
1000
|
100
|
120
|
18-Φ14
|
|
1200×400
|
1256×456
|
1296×496
|
1000
|
100
|
120
|
18-Φ14
|
|
500×500
|
560×560
|
606×606
|
1200
|
120
|
140
|
16-Φ16
|
|
550×550
|
610×610
|
656×656
|
1300
|
120
|
140
|
16-Φ16
|
|
600×600
|
660×660
|
706×706
|
1400
|
120
|
140
|
16-Φ16
|
|
1100×600
|
1180×660
|
1206×706
|
1400
|
120
|
140
|
20-Φ18
|
|
700×700
|
770×770
|
820×820
|
1600
|
140
|
160
|
20-Φ18
|
|
800×800
|
870×870
|
920×920
|
1700
|
140
|
160
|
20-Φ18
|
|
1200×800
|
1280×870
|
1340×920
|
1700
|
140
|
160
|
28-Φ18
|
|
900×900
|
974×974
|
1030×1030
|
2000
|
160
|
180
|
24-Φ18
|
|
1000×1000
|
1074×1074
|
1130×1130
|
2200
|
160
|
180
|
24-Φ18
|
|
1100×1100
|
1183×1183
|
1240×1240
|
2500
|
180
|
200
|
28-Φ18
|
|
1200×1200
|
1280×1280
|
1340×1340
|
2700
|
180
|
200
|
32-Φ18
|
