公称压力
PN
|
适用温度
Working temperature
|
适用介质
Working medium
|
|
≤0.6MPa
|
≤300℃
|
≤450℃
|
粉料、粉尘气体、油品、水等
Powder, gas with powder dust, oil, water etc
|

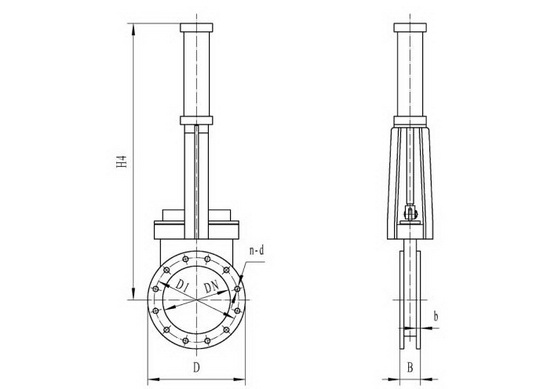

外形图：Outline
外形连接尺寸：Profile dimensions
|
DN
|
D
|
D1
|
B
|
b
|
n-d
|
H
|
|
100
|
210
|
170
|
80
|
12
|
4-Φ18
|
568
|
|
125
|
240
|
200
|
80
|
12
|
8-Φ18
|
633
|
|
150
|
260
|
225
|
80
|
14
|
8-Φ18
|
693
|
|
175
|
290
|
255
|
80
|
14
|
8-Φ18
|
758
|
|
200
|
320
|
280
|
80
|
16
|
8-Φ18
|
858
|
|
225
|
340
|
305
|
80
|
16
|
8-Φ18
|
928
|
|
250
|
370
|
335
|
80
|
18
|
12-Φ18
|
993
|
|
300
|
440
|
395
|
90
|
18
|
12-Φ22
|
1170
|
|
350
|
490
|
445
|
90
|
18
|
12-Φ22
|
1295
|
|
400
|
540
|
495
|
100
|
20
|
16-Φ22
|
1420
|
|
450
|
590
|
550
|
100
|
20
|
16-Φ22
|
1545
|
|
500
|
640
|
600
|
100
|
20
|
20-Φ22
|
1710
|
|
550
|
700
|
655
|
100
|
22
|
20-Φ26
|
1840
|
|
600
|
750
|
705
|
110
|
22
|
20-Φ26
|
1965
|
|
650
|
810
|
760
|
110
|
22
|
20-Φ26
|
2095
|
|
700
|
860
|
810
|
110
|
24
|
24-Φ26
|
2255
|
