技术参数表：Technical Data Sheet
|
技术性能 Name
|
技术参数Parameters
|
|
充气槽压力
air chute pressure
|
0.1MPa
|
|
适用温度Temperature
|
≤120℃
|
|
相对湿度
Relative humidity
|
≤1%
|
|
适用介质Medium
|
水泥生料、水泥成品、铝镁粉、矿粉、滑石粉等粉料
Cement raw material, cement, breeze, talcum powder etc
|
|
规格Spec
|
150～250
|
300～350
|
400～500
|
630
|
|
执行器Actuator
|
250N.M
|
600N.M
|
1600N.M
|
2500N.M
|

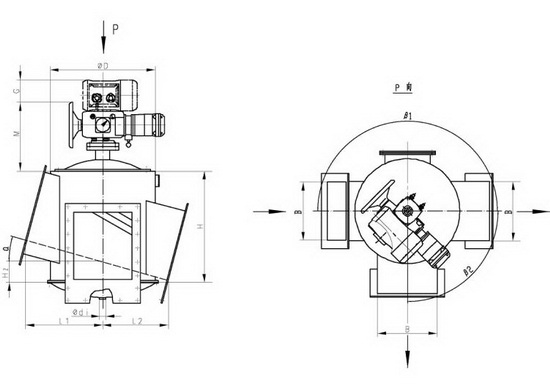

外形图：Outline
外形连接尺寸：Profile dimensions
|
B
|
H
|
α
|
Hz
|
L1
|
L2
|
φD
|
φdi
|
M
|
G
|
|
150
|
463
|
4°
|
44
|
209
|
196
|
330
|
1"
|
367
|
113
|
|
5°
|
47
|
213
|
197
|
|
6°
|
50
|
218
|
199
|
|
8°
|
56
|
226
|
201
|
|
10°
|
62
|
236
|
204
|
|
12°
|
68
|
244
|
207
|
|
200
|
566
|
4°
|
52
|
325
|
309
|
530
|
1"
|
397
|
113
|
|
5°
|
56
|
332
|
311
|
|
250
|
6°
|
61
|
338
|
313
|
|
8°
|
70
|
350
|
317
|
|
300
|
10°
|
80
|
362
|
321
|
|
12°
|
89
|
374
|
326
|
|
350
|
667
|
4°
|
62
|
475
|
459
|
830
|
11/2"
|
367
|
189
|
|
5°
|
69
|
482
|
461
|
|
400
|
6°
|
77
|
488
|
463
|
|
8°
|
91
|
500
|
465
|
|
500
|
10°
|
106
|
512
|
417
|
|
12°
|
121
|
524
|
476
|
|
630
|
914
|
4°
|
71
|
611
|
578
|
1050
|
2"
|
397
|
246
|
|
5°
|
80
|
621
|
581
|
|
6°
|
89
|
630
|
584
|
|
8°
|
108
|
648
|
589
|
|
10°
|
127
|
655
|
595
|
|
12°
|
146
|
683
|
600
|
