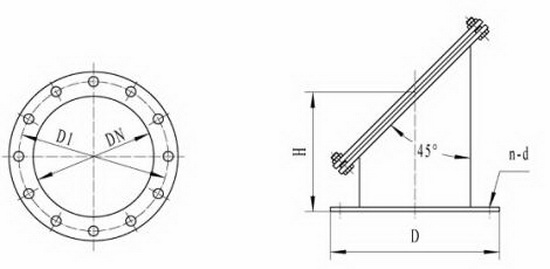

外形图：Outline
外形连接尺寸：Profile dimensions
|
DN
|
D1
|
D
|
H
|
n-d
|
重量(Kg)W
|
|
200
|
245
|
280
|
220
|
8-Φ12
|
37
|
|
250
|
305
|
350
|
250
|
12-Φ12
|
44
|
|
300
|
355
|
400
|
300
|
12-Φ12
|
55
|
|
350
|
405
|
450
|
350
|
12-Φ12
|
65
|
|
400
|
455
|
500
|
400
|
16-Φ14
|
82
|
|
450
|
505
|
550
|
450
|
16-Φ14
|
94
|
|
500
|
555
|
600
|
500
|
20-Φ14
|
108
|
|
600
|
655
|
700
|
550
|
20-Φ14
|
142
|
|
700
|
755
|
800
|
550
|
20-Φ14
|
180
|
|
800
|
855
|
900
|
600
|
24-Φ14
|
202
|
